Cincinnati Proform 175 ton x 10' CNC Press Brake

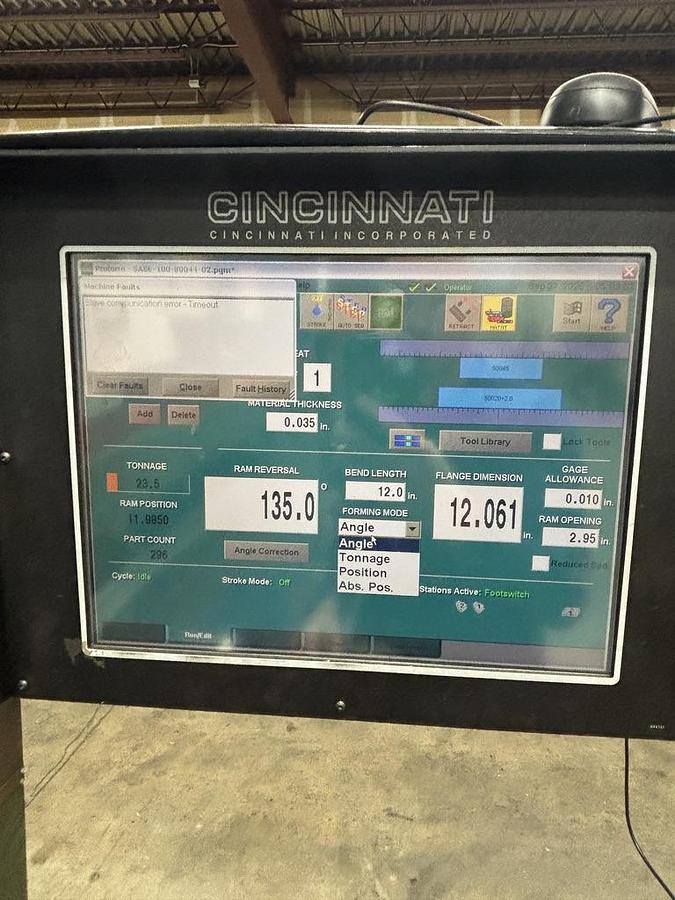

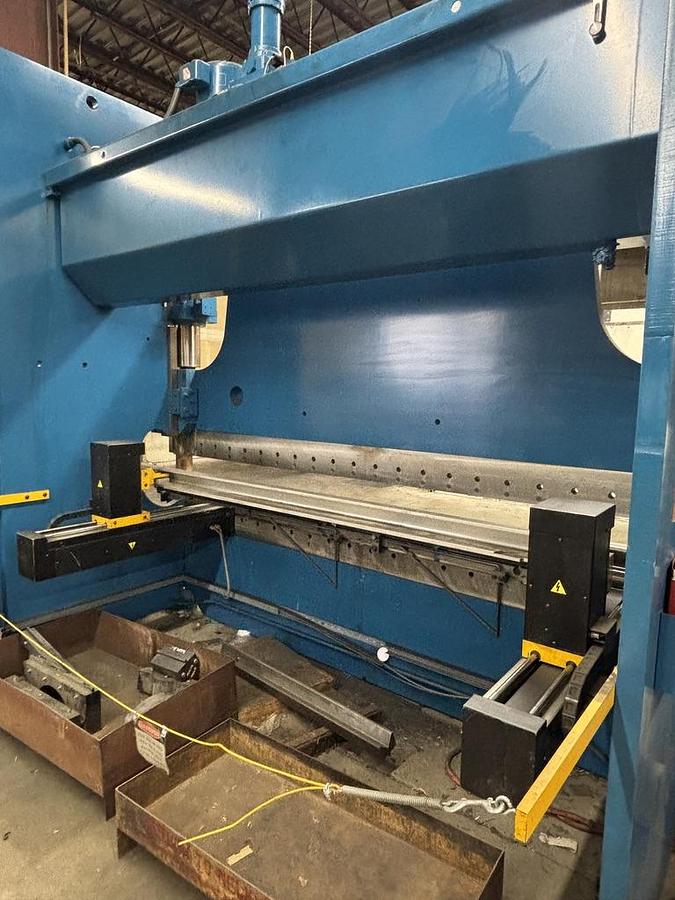

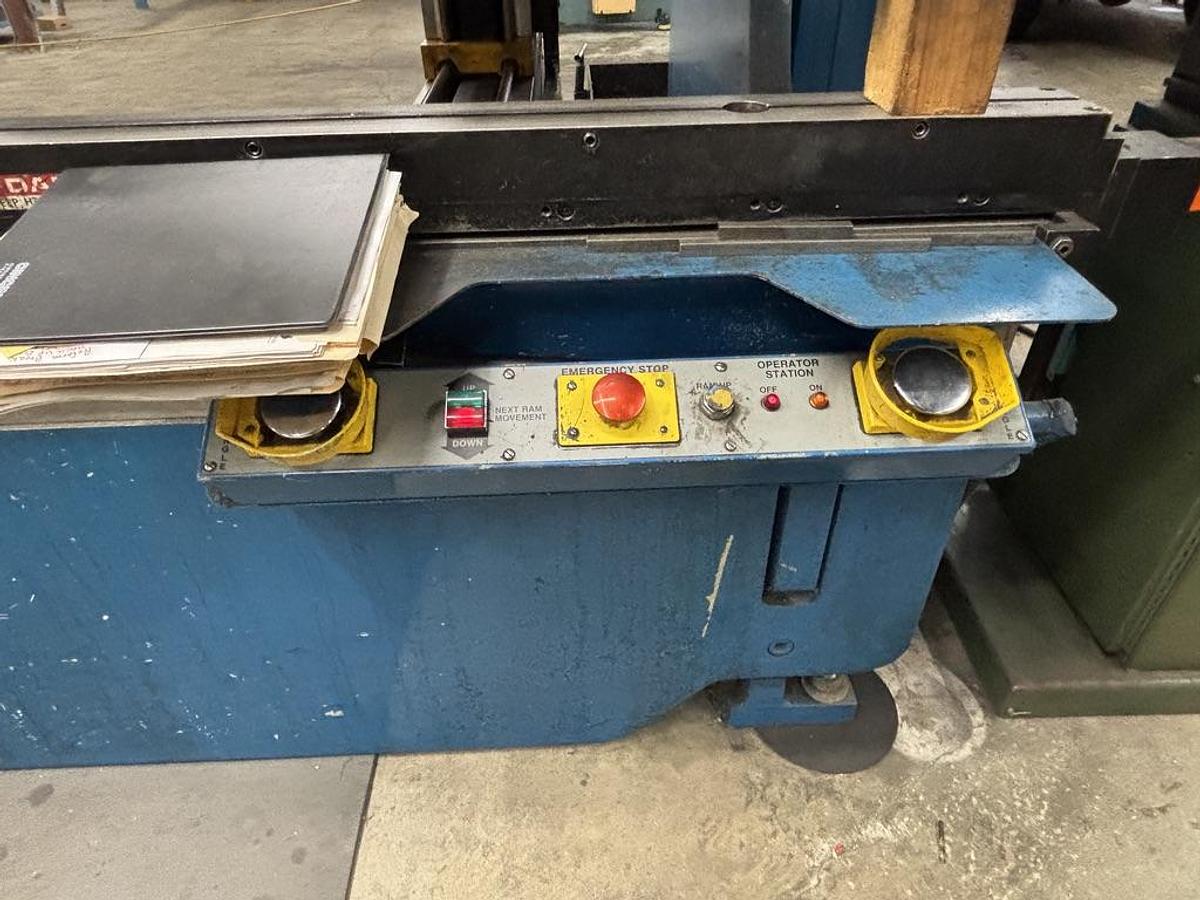

The Cincinnati Proform 175 Ton x 10' CNC Press Brake is a dependable fabrication machine built for precision and efficiency, equipped with a Cincinnati CNC Control and Backgage for automation. Its design includes a 3-position footswitch and palm buttons, enhancing operational ease and safety. The CNC Autocrown and 6" upper die clamps ensure accuracy in forming, producing high-quality results. With a 175-ton capacity and a nominal length of 10 feet, this press brake suits various fabrication requirements. It offers a maximum distance between housing of 10' 6", with an overall capacity of 12 feet. Capable of operating at high speeds, its ram reaches 180 IPM during approach, while return speeds range from 1 to 200 IPM, and forming speeds are adjustable from 1 to 40 IPM. Its 16" stroke and throat depth accommodate a range of material sizes. Powered by a 15 HP motor, the machine has a standard closed height of 7". The backgage features a 24" X axis and an 8" R axis for precise material positioning. As a used piece of equipment, it remains proficient and versatile, suitable for a broad spectrum of fabrication projects.
