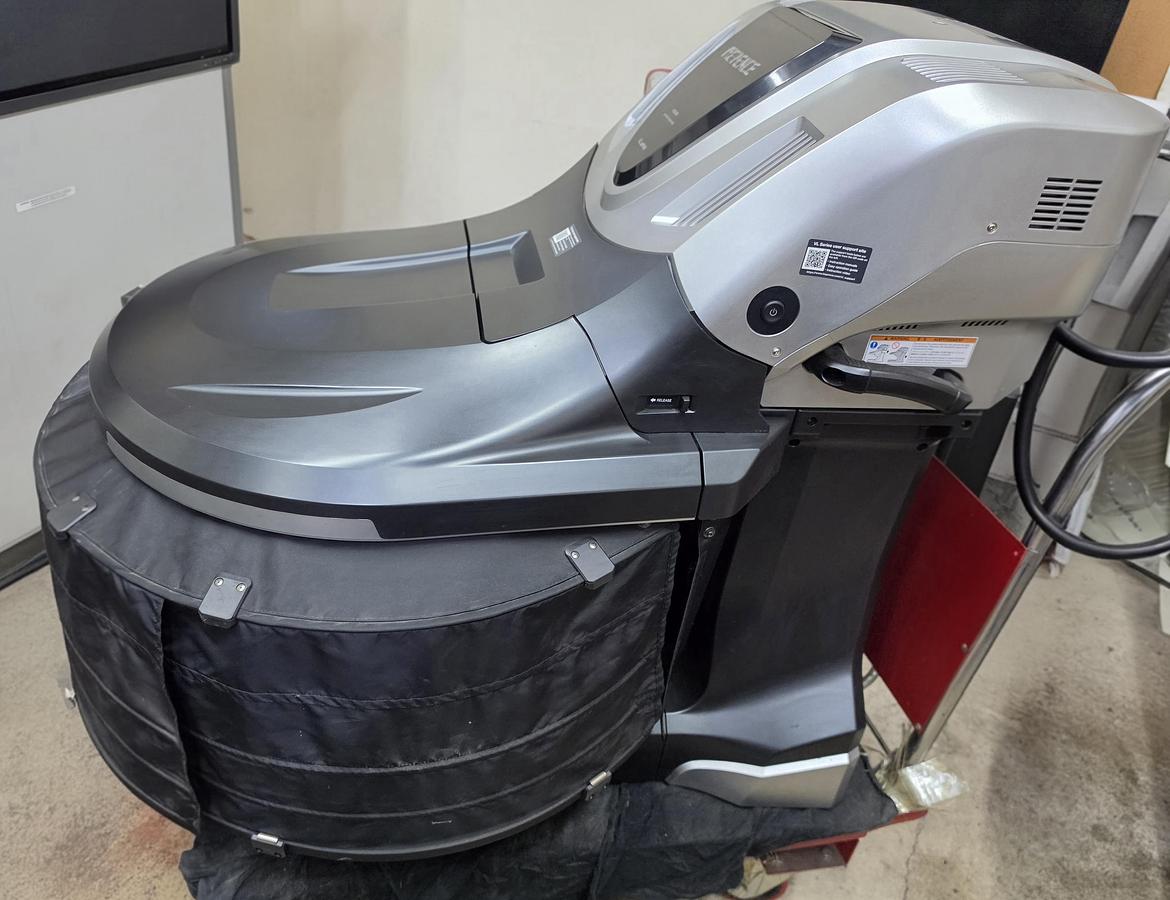

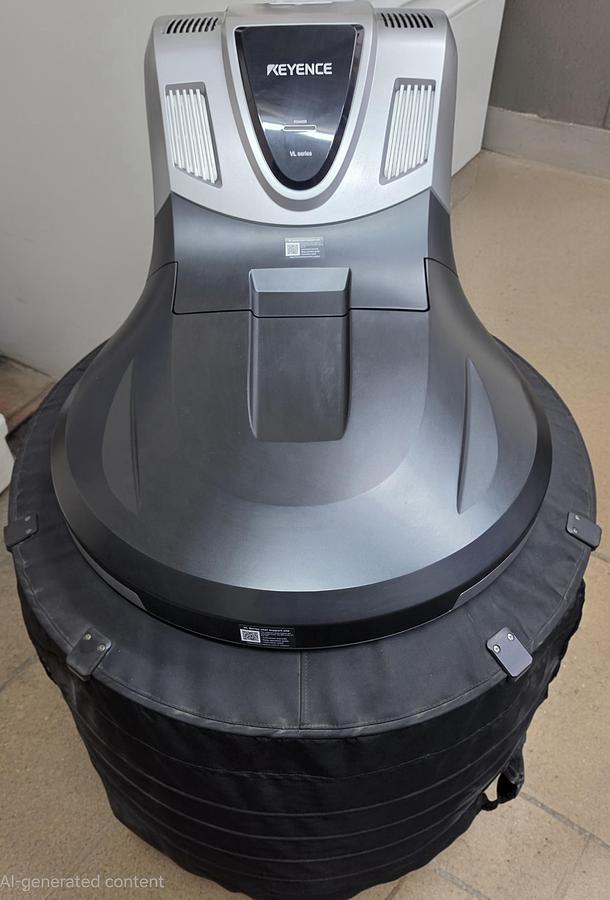

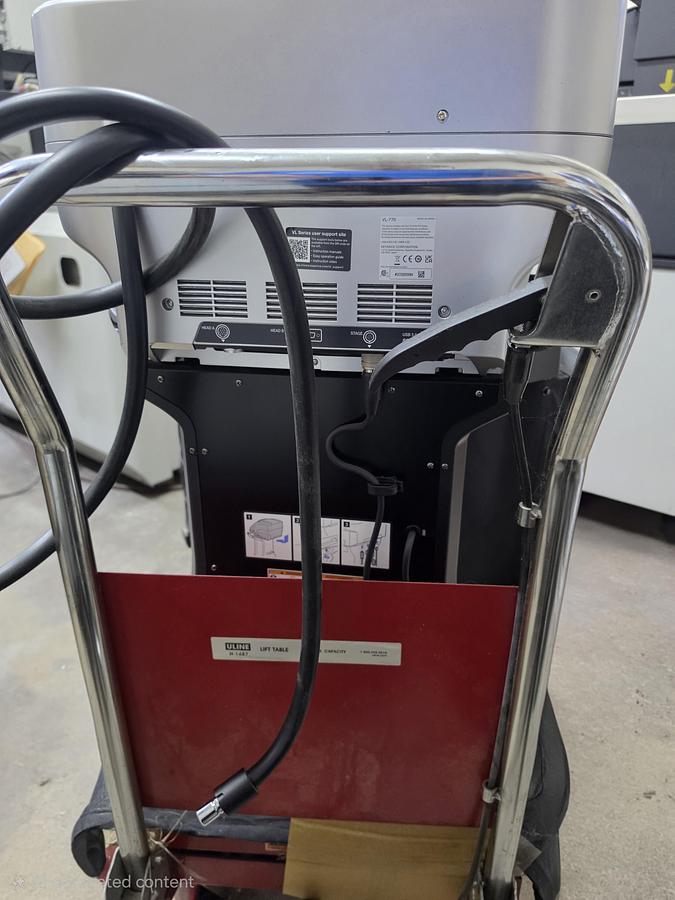

Keyence VL-770 3D Scanner CMM

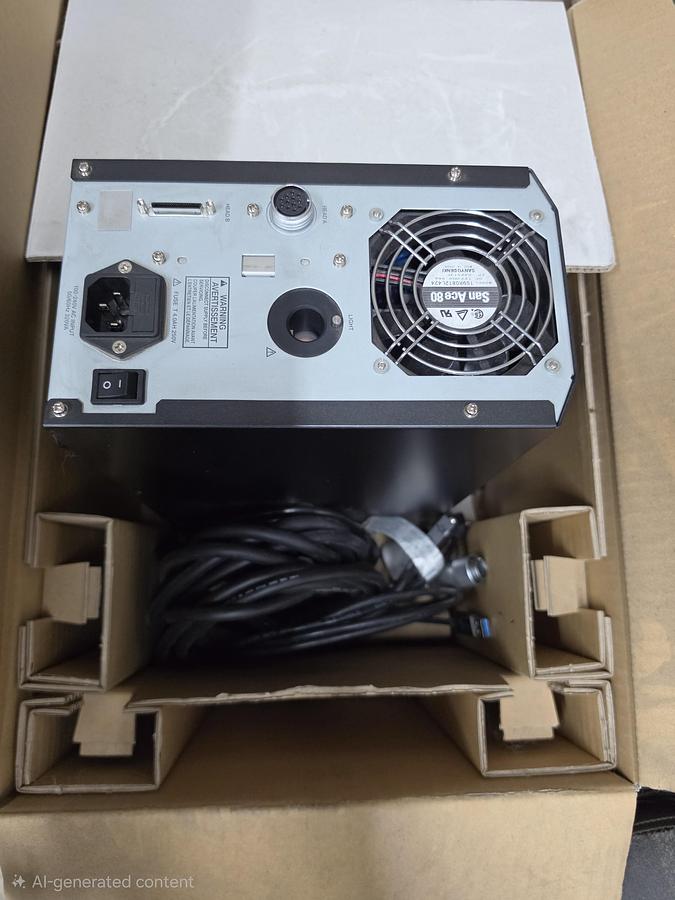

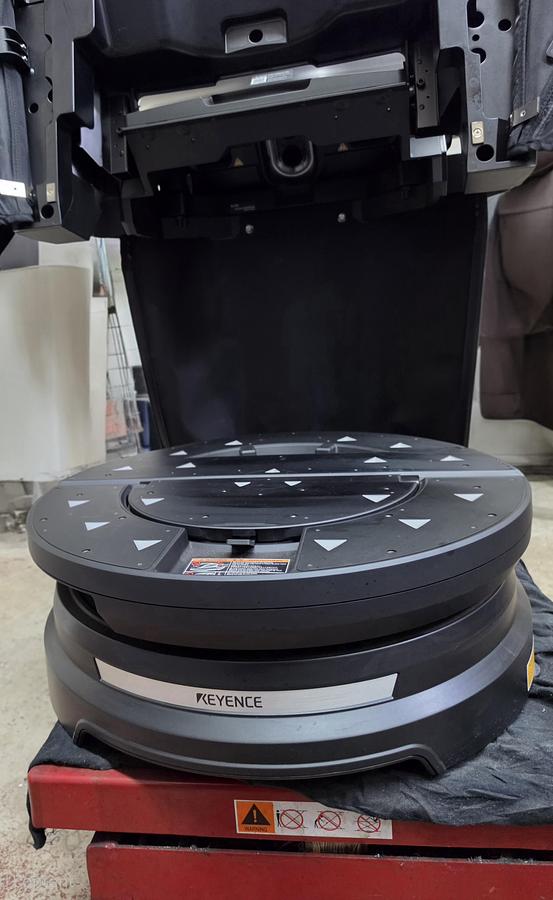

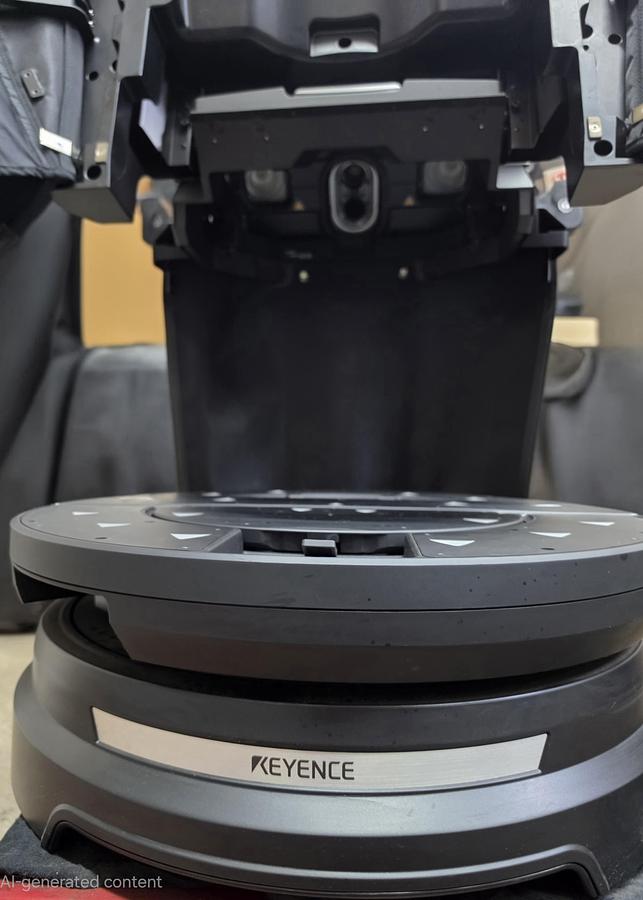

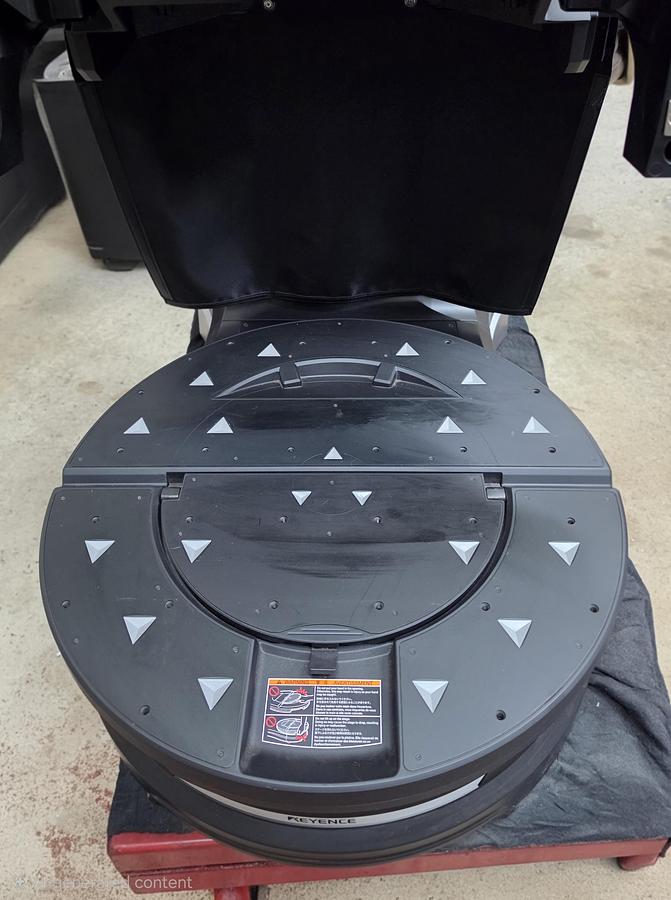

The Keyence VL-770 3D Scanner CMM is a used yet reliable inspection tool ideal for precision measurement tasks. It comes complete with essential components, including the VL-700 Controller, VL-750 Measurement Stand, and VL-770 Measurement Head. The setup also includes a VL Support Package, Light Blocking Curtain, Calibration Board, and a CAD Conversion Module, offering a comprehensive solution for your scanning needs. This 3D scanner features a versatile stage with a top panel size of Ø19.69" and a movement range of Ø7.87". It supports both low magnification (Ø11.81" x 7.87" wide field) and high magnification (Ø2.76" x 1.97" high resolution) for varied applications. The stage offers 360° rotation and a tilt mechanism of 45°, with a notable repeatability of 2 μm to ensure precise results. It boasts a load capacity of up to 110 lbs, making it suitable for a wide range of components. Overall, the Keyence VL-770 provides a robust and accurate solution for 3D measurement, ideal for industries requiring meticulous inspection and tooling capabilities. Its advanced features combined with ease of use make it a valuable asset for any manufacturing or engineering setup.
