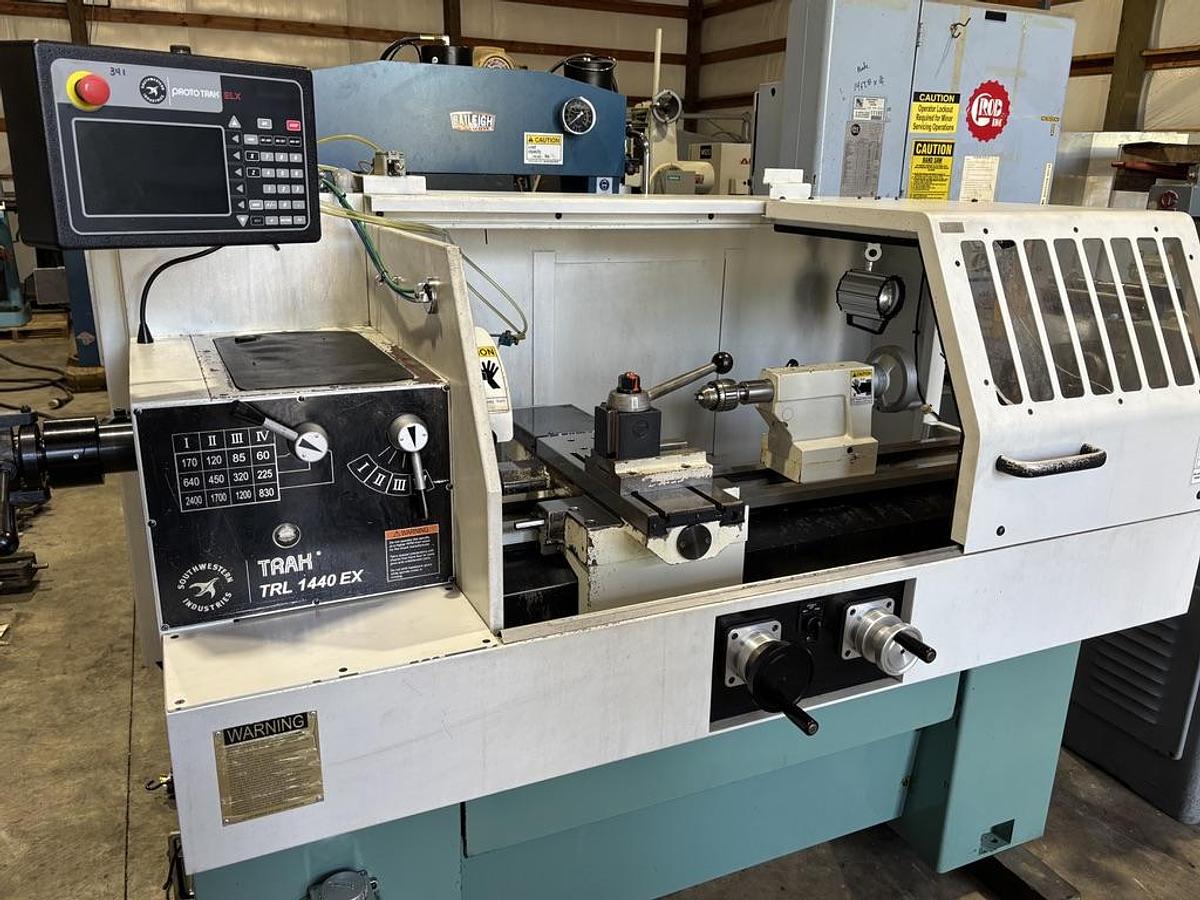

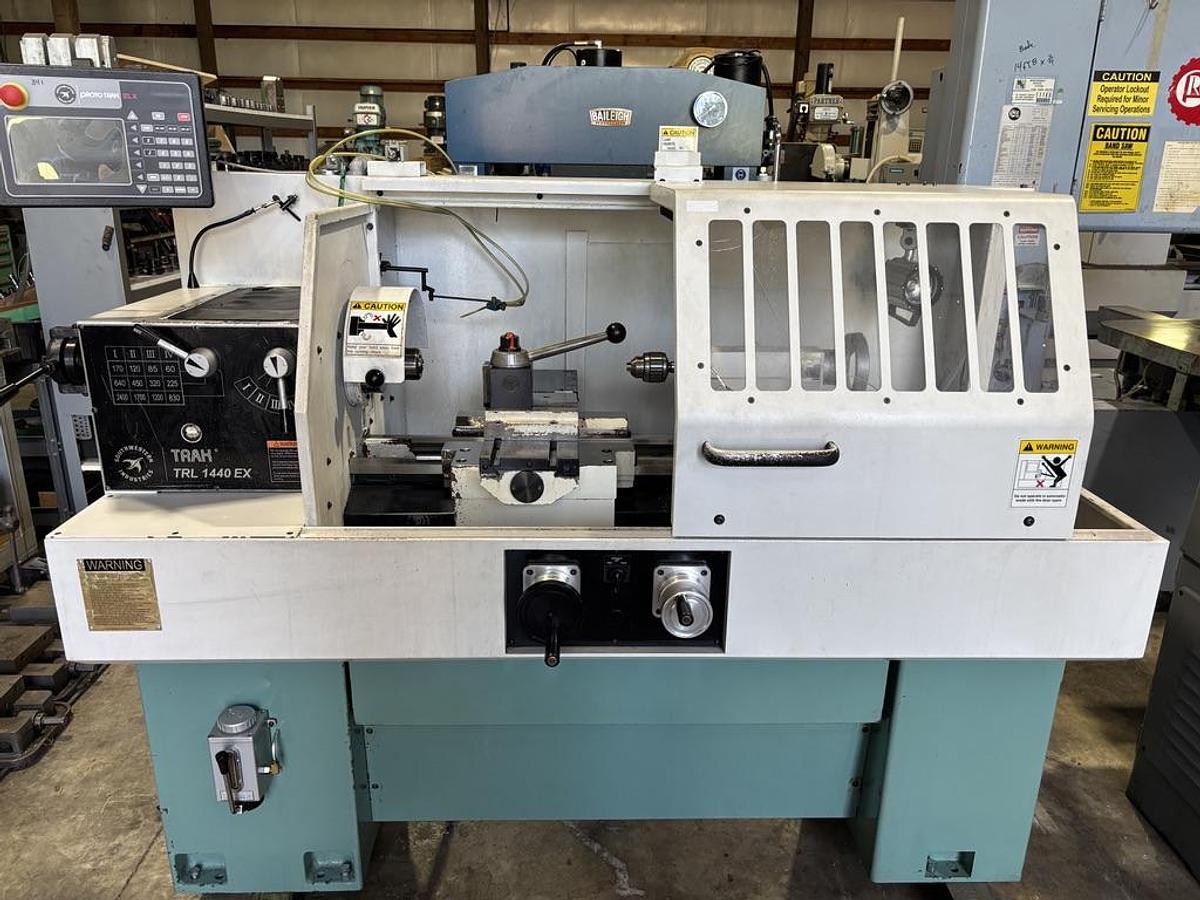

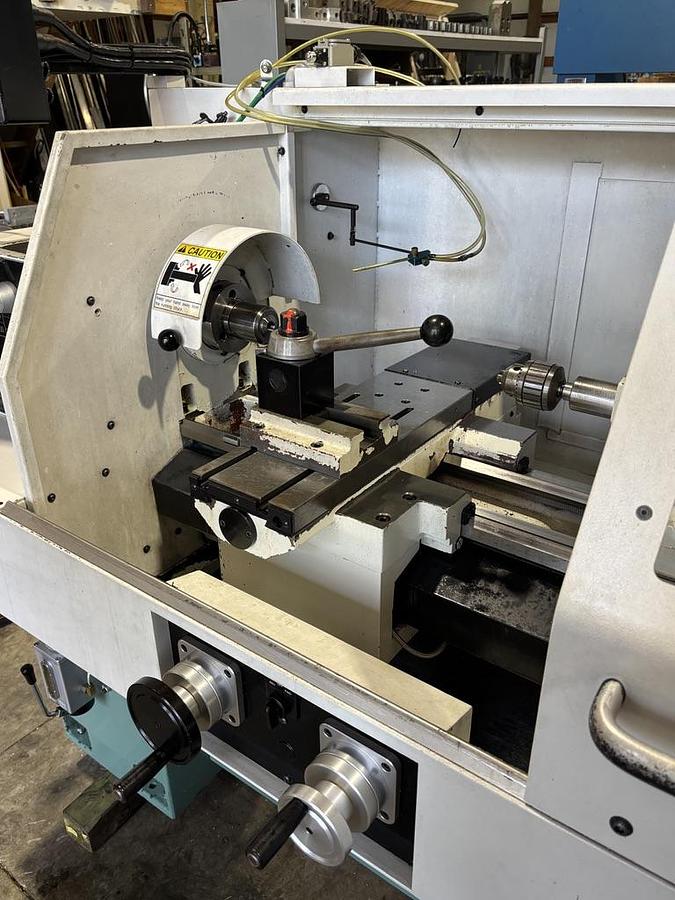

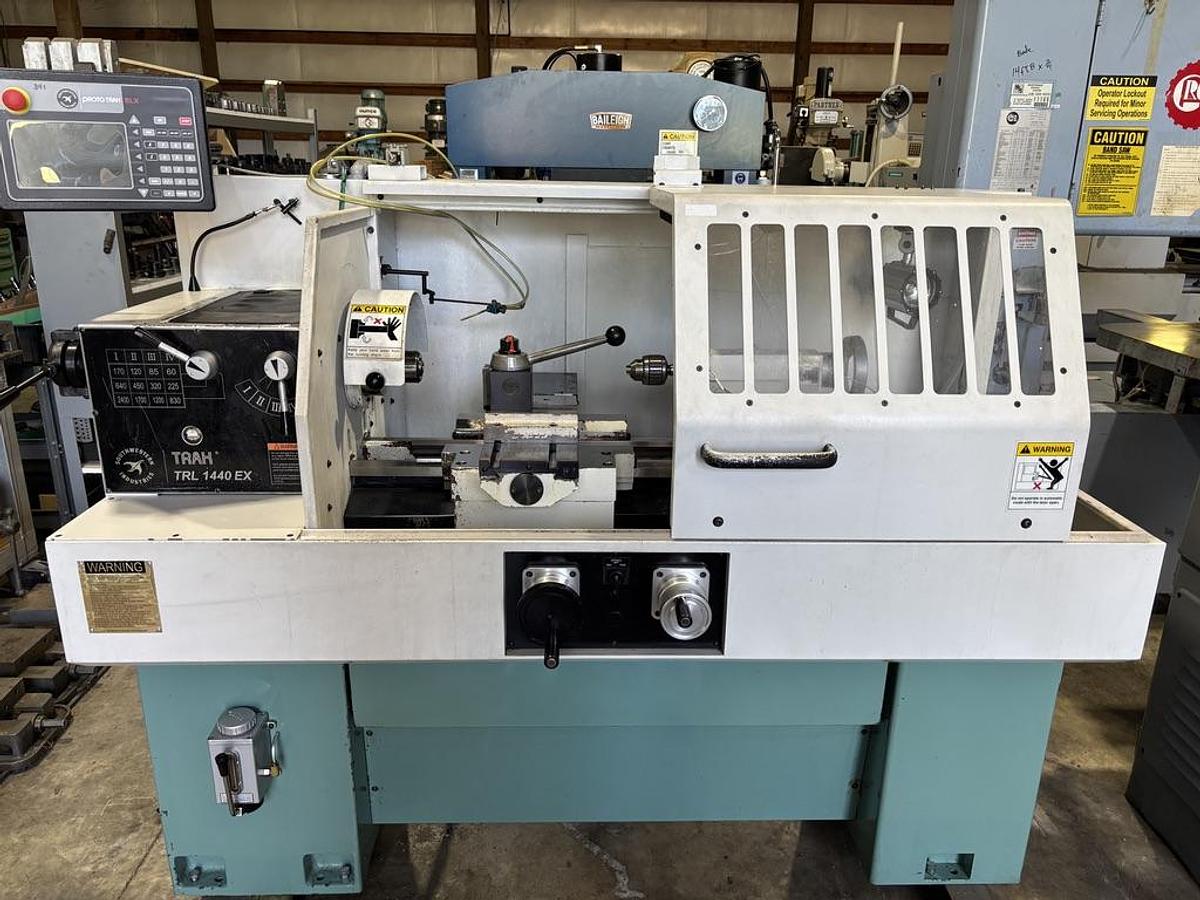

2018 Southwestern Industries Proto TRAK TRL 1440 EX CNC Lathe
or
Call 253-584-7500
Description
Equipped With:

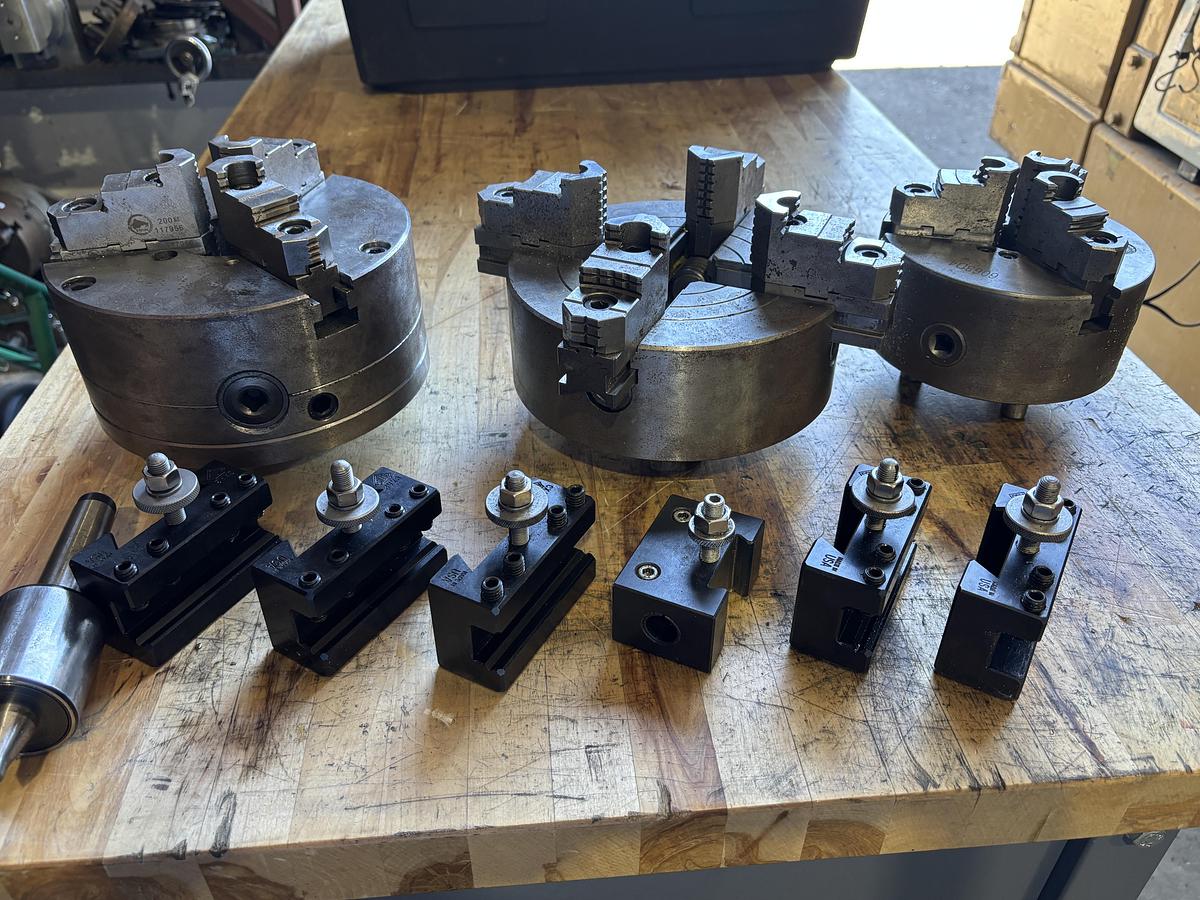

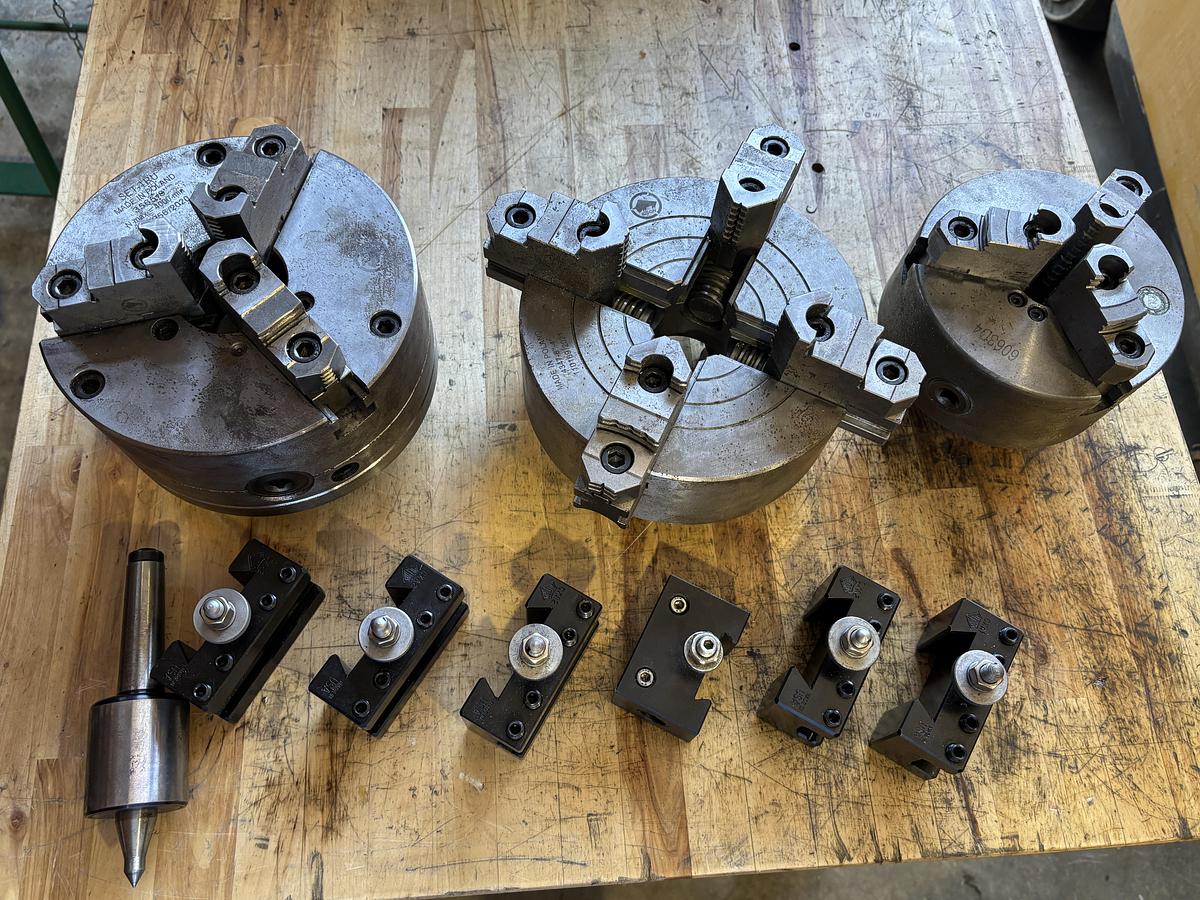

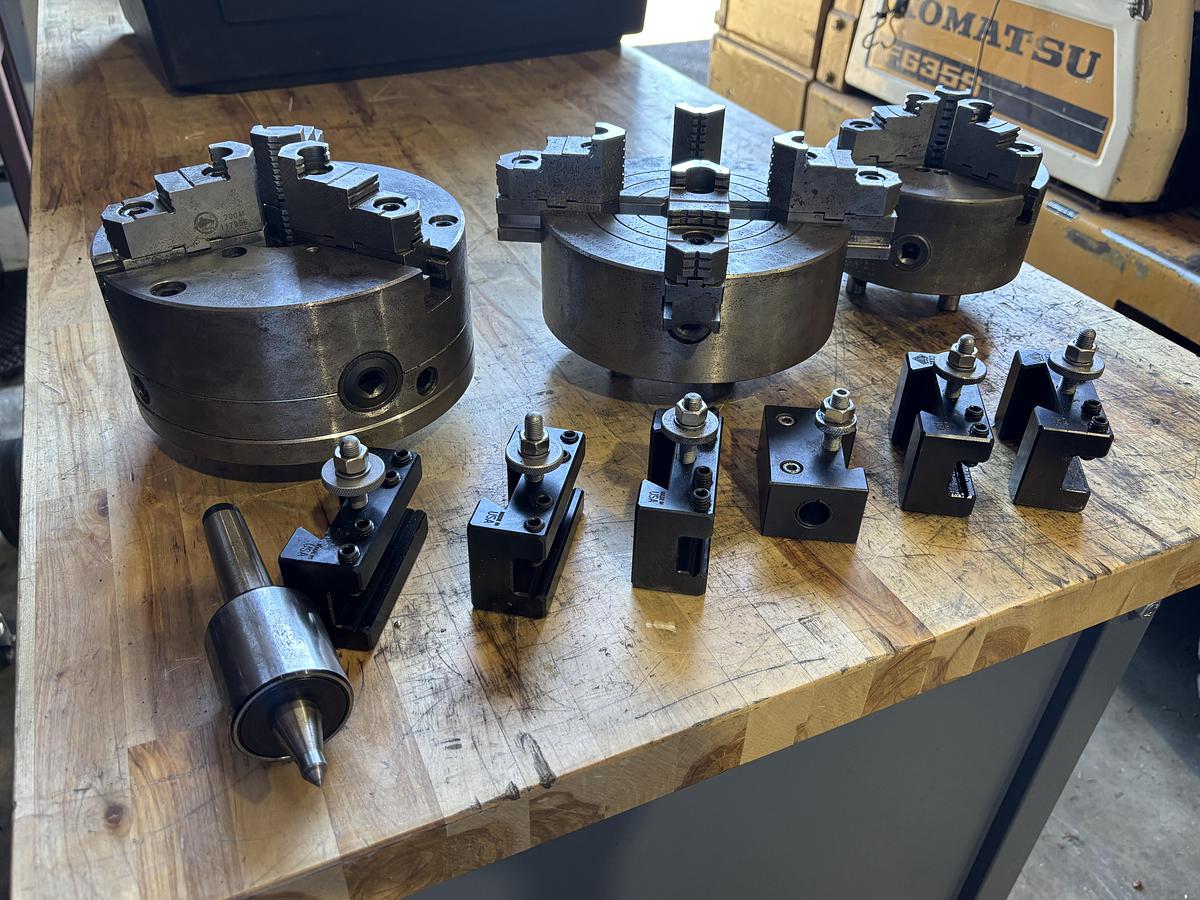

- 8" 3 Jaw Chuck
- 8" 4 Jaw Chuck
- 6" 3 Jaw Chuck
- 5C Collet Nose
- Collet Closer
- (6) Quick Change Tool Blocks
- Quick Change Tool Post
- Chip Pan
- Coolant System

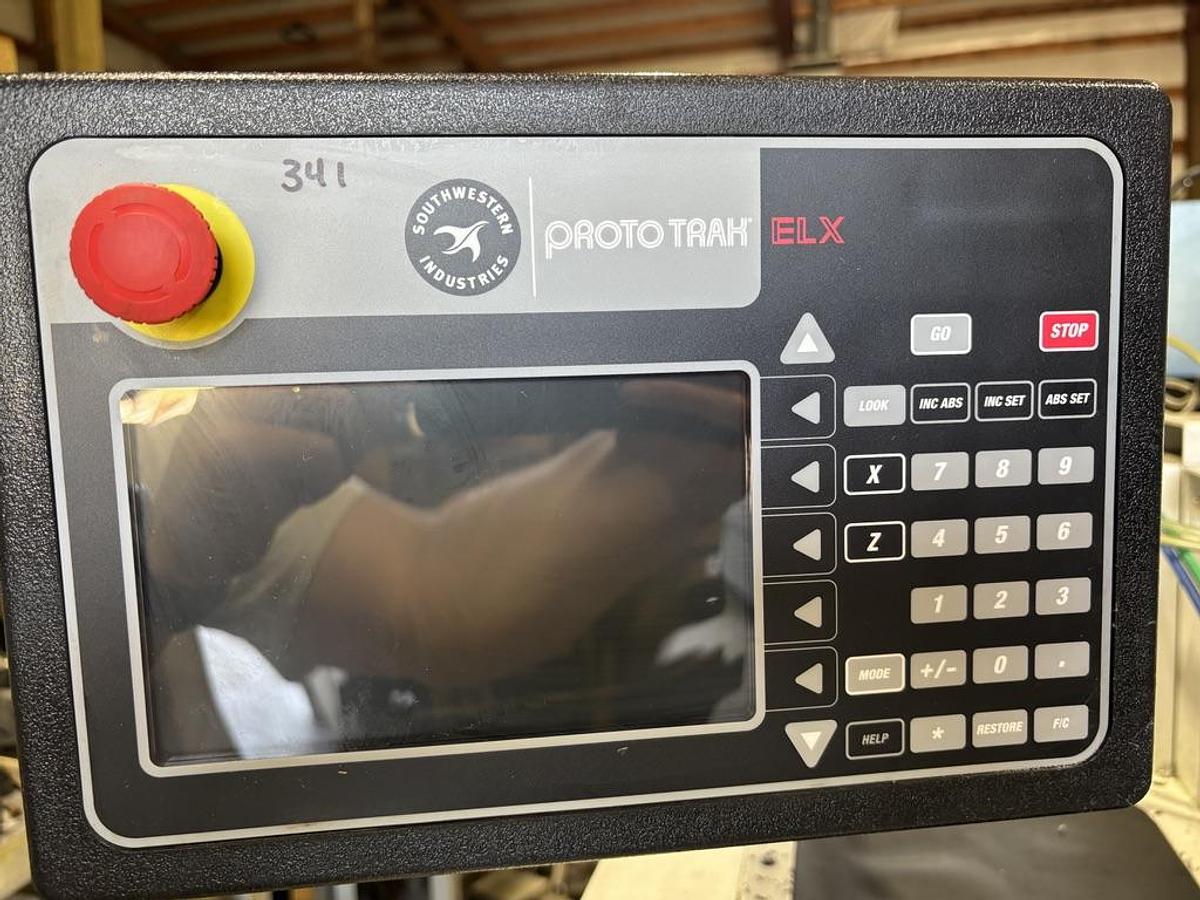

- ProtoTRACK ELX CNC Control
- Programable Mode & Manual Mode
Specifications
| Manufacturer | TRAK |
| Model | TRL-1440 EX |
| Year | 2018 |
| Stock Number | 1861 |
| Swing | 14" |
| Distance Between Centers | 40" |
| Swing Over Cross Slide | 7" |
| Cross Slide Travel | 8" |
| Chuck | 8" 3-Jaw |
| Spindle Thru Hole | 1.25" |
| Spindle Speed Range | 60-2400 RPM |
| Tailstock | YES |
| Tailstock Taper | MT#3 |
| Main Motor | 5 HP |
| Machine Power | 220V 3PH |
| Machine Dimensions | 73" X 44" X 57" |
| Machine Weight | 2000 LBS |
