Sold

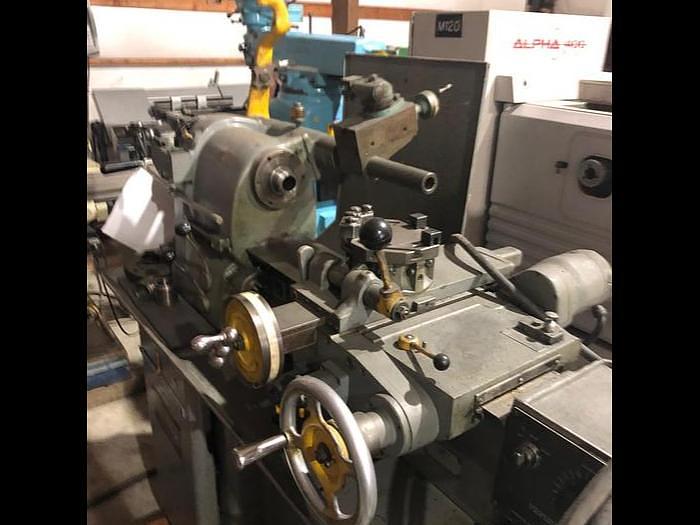

Hardinge HC CF Chucker Lathe #1498
Description

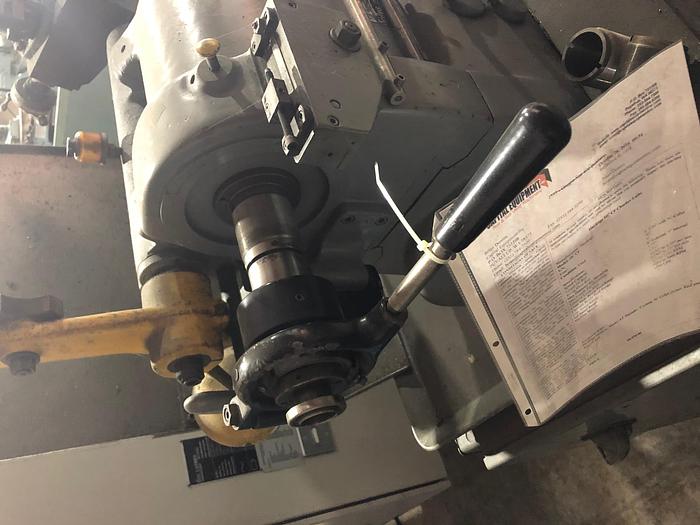

Hardinge HC CF Hardinge Holders, Model AT Threader, Coolant, 5C Collet cl;oser, Face plate, Part off tool
Specifications
| Stock Number | 1498 |
| Length of bed | 36" |
| Machine weight | 1750 LBS |
| Swing over bed | 9" |
| 3rd speed range | 1050 to 3000 RPM |
| Low speed range | 125 to 1100 RPM |
| Spindl capacity | 1 1/16" with 5C Collet |
| Travel of cross slide | 4.50" |
| Max length for threading | 1.75" |
| Carriage power feed range | 0.250" to 10" per min |
| Max diameter for threading | 6" External 5" Internal |
| Cross slide power feed range | 11/32" to 6.25" per min |
