No longer available

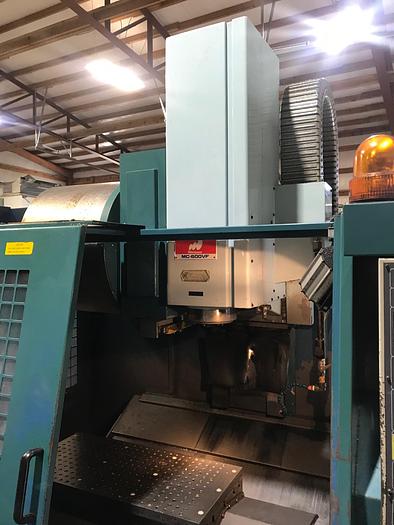

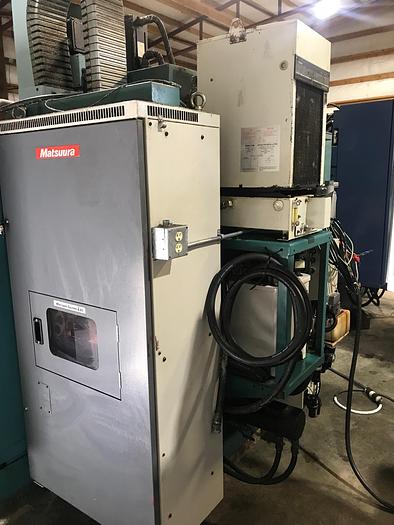

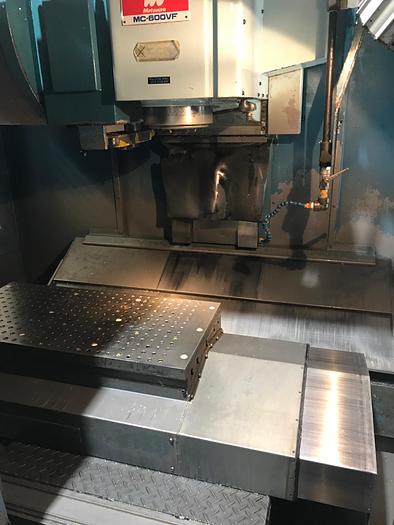

1992 Matsuura MC-600 VF Machining Center #1672
Description
Matsuura MC-600 VF

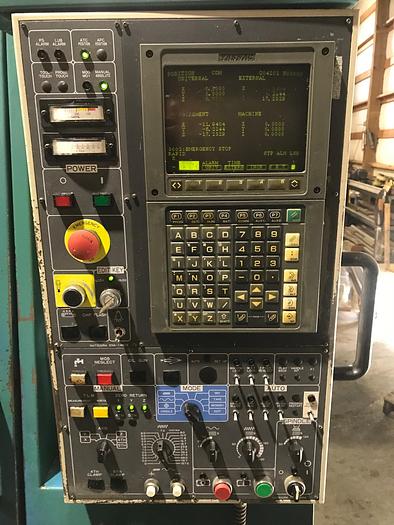

Yasnac I80 control, Coolant
Specifications
Manufacturer | Matsuura |
Model | MC-600 VF |
Year | 1992 |
Serial Number | 920409786 |
Stock Number | 1672 |
Power | 240 volts 3 phase |
Weight | 9200 LBS |
Main motor | 7.5/5.5 KW |
Floor space | 190" W X 98" D |
Tool storage | 20 Positions |
Spindle taper | BT40 |
X-axis travel | 23.62" |
Y-axis travel | 18.5" |
Spindle speeds | 30-8000 RPM |
Max tool weight | 17.6 lbs |
Tool change time | 1.8 sec |
Cutting feed rate | 0.1 - 196 IPM |
Max tool diameter | 3.15" |
Maximum table load | 880 lbs |

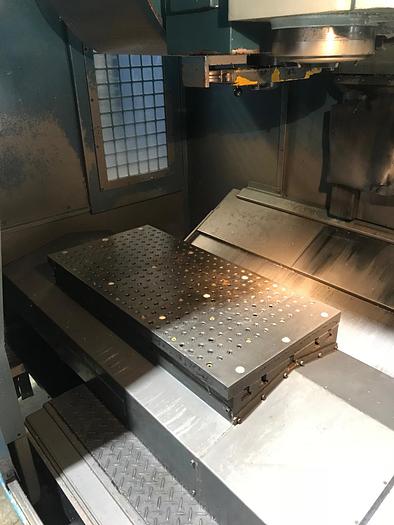

Table working area | 34.6 " X 15.7" |
Rapid traverse z axis | 472 IPM |
Rapid traverse x,y axis | 590 IPM |
Total electrical capacity | 32 KVA |
Max tool diameter with adjacent pocket empty | 5.9" |
